Assetti Mclaren Harness Bar


Fitting Details

Installation available at our state of the art fitting centre based in Cheshire Oaks in the Northwest of England.

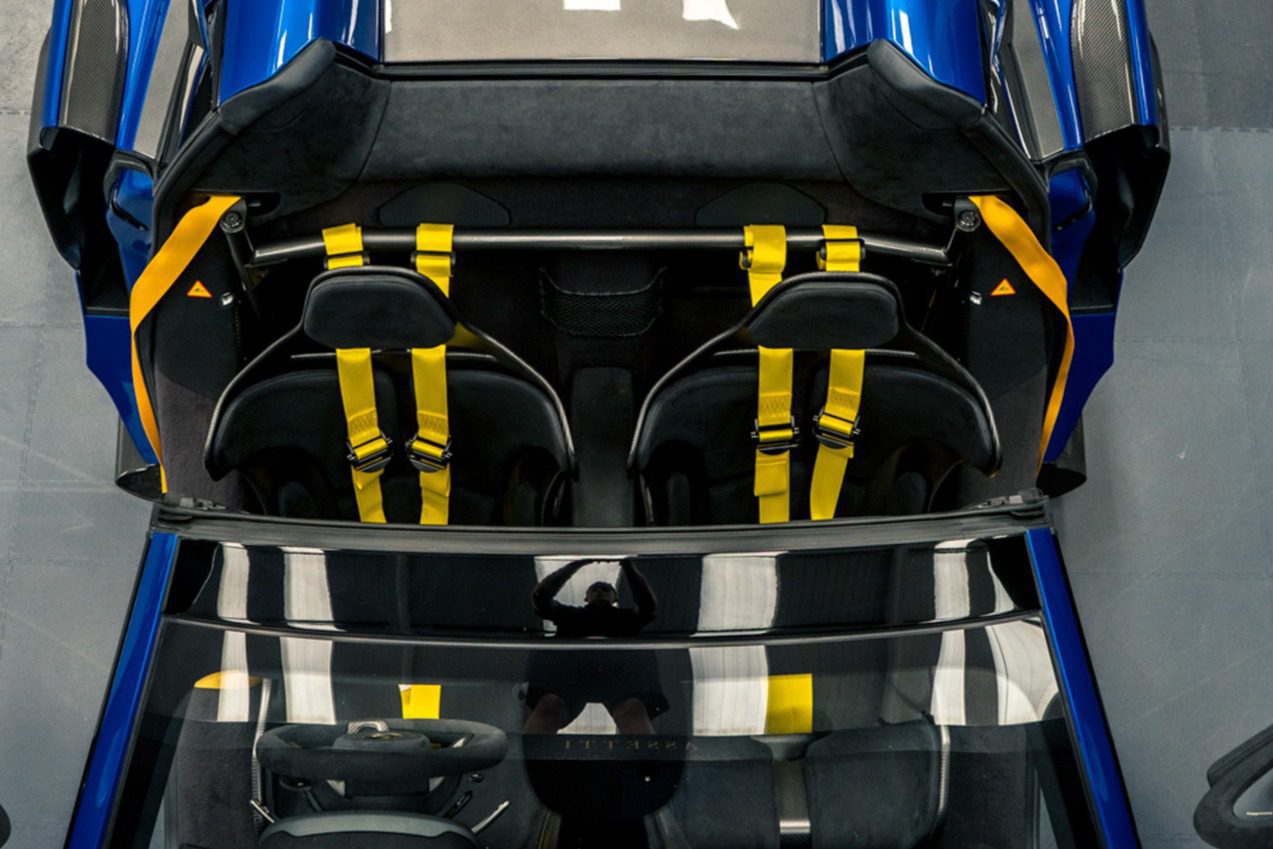

Assetti performance are proud to offer Mclaren customers a solution for safely running harnesses in their vehicle. We have designed a solution that requires no modification and is a direct bolt. Made from high grade material and available to pair with FIA approved harnesses to ensure maximum safety as well as function.

Development
Using the latest 3D scanning technology, the interior is scanned with and without seats and a model build up in CAD. A design was then drawn ensuring it did not impede on space in the cab or require any compromise. Hours and hours of measuring, cutting, welding and test fitting and the prototype was ready to go into the car. Bolting to all factory points and allowing the use of a 5 point harness while retaining the factory seatbelts also.

Fitment
Our harness bar is designed to fit Mclaren 540/570/600LT in both coupe and spider format and requires no modifications to factory trim.

Options
The harness bar is available in a range of powdercoated colours: black/gunmetal grey/silver. Other colours may be available upon request.

We can also supply a range of FIA approved harnesses in colours black/orange/blue/yellow for an additional cost.

Installation
This is available supply only or can be fitted at Assetti in Cheshire for an additional cost. To enquire about this product, or other tuning products please contact us on [email protected] or 01244 629533



Specification
Manufactured in the UK from High quality Motorsport Materials. Produced from FIA/MSUK Specification standard 38 x 2.5mm E355+N Seamless Steel.  All Plate work produced from 3mm High Quality Steel. All Bolts used complying to at least high tensile Grade 8.8.

This product is designed to be used off-road in a track environment and we do not recommend using this on the road in place of factory fit seatbelts.

£1,999.00£2,899.00
