Eventuri 8V Rs3 Ttrs Gen 2 Carbon Fiber Intake


Fitting Details

Installation available at our state of the art fitting centre based in Cheshire Oaks in the Northwest of England.

AUDI 8V RS3 TTRS GEN 2

Performance Gain (RS3 with Stock Turbo): 15-18hp, 19-23ft-lb
Performance Gain (RS3 with Hybrid Turbo): 25-30hp, 20-24ft-lb
Flow Bench Data: Stock Intake 530 CFM : Eventuri Intake 840 CFM

Fitment: RS3 8V Gen 2 and TTRS 8S including the 2019 OPF DWNA versions.

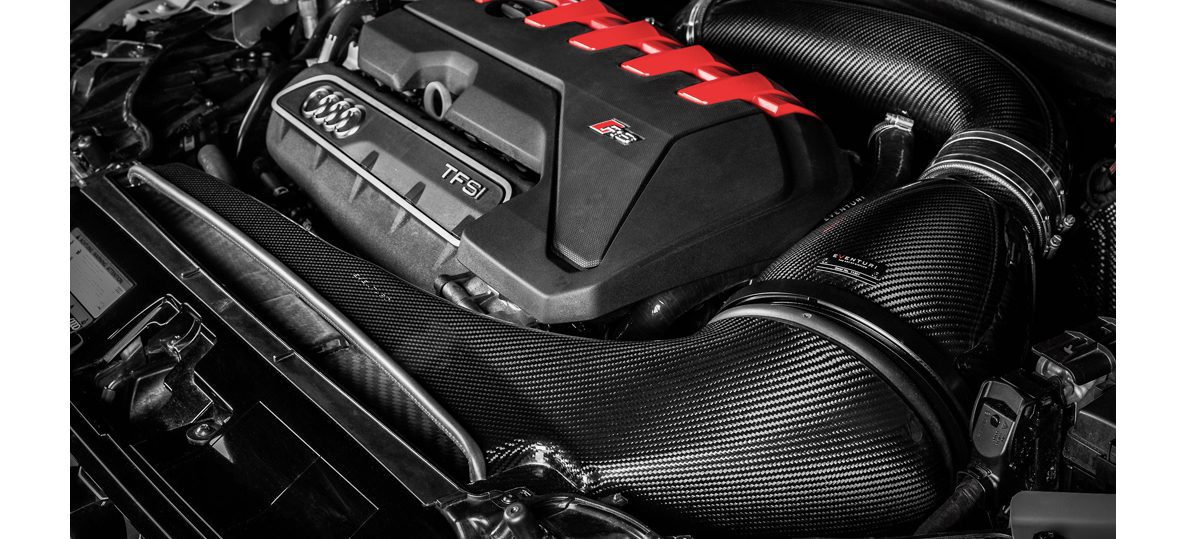

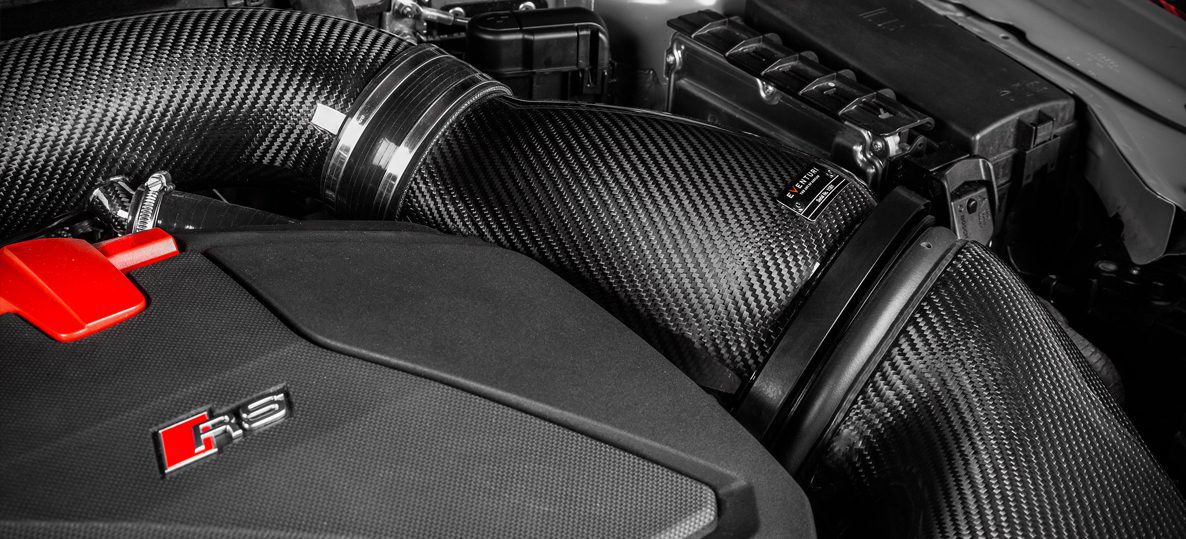

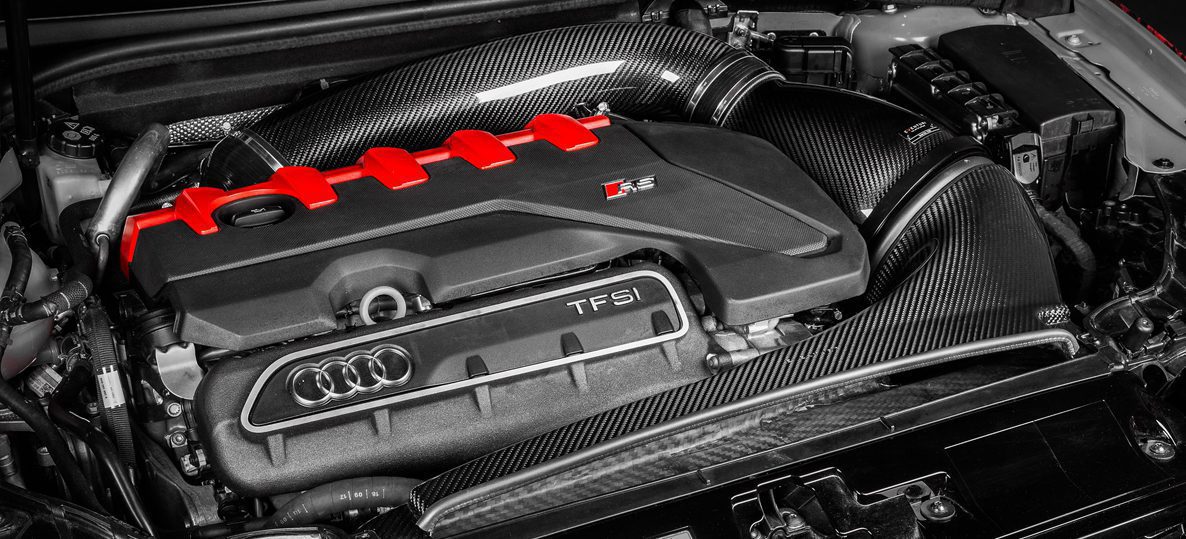

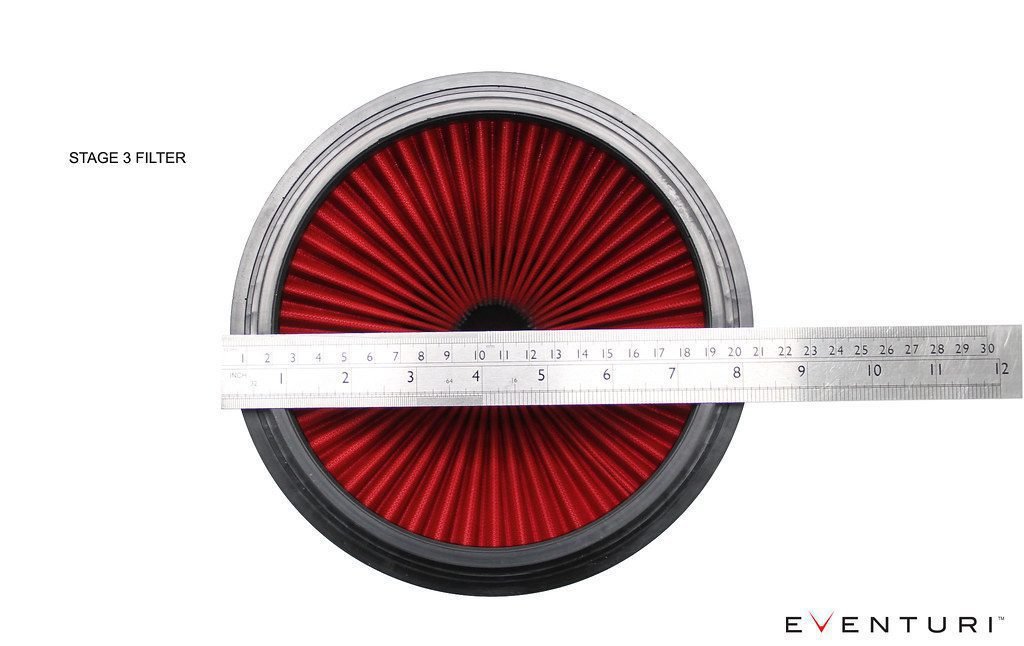

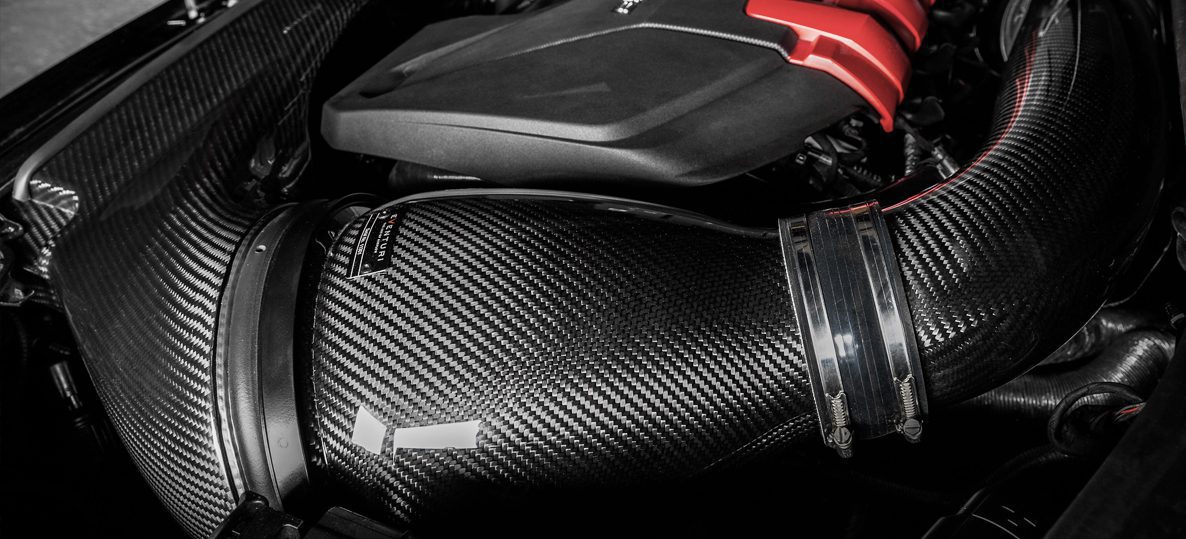

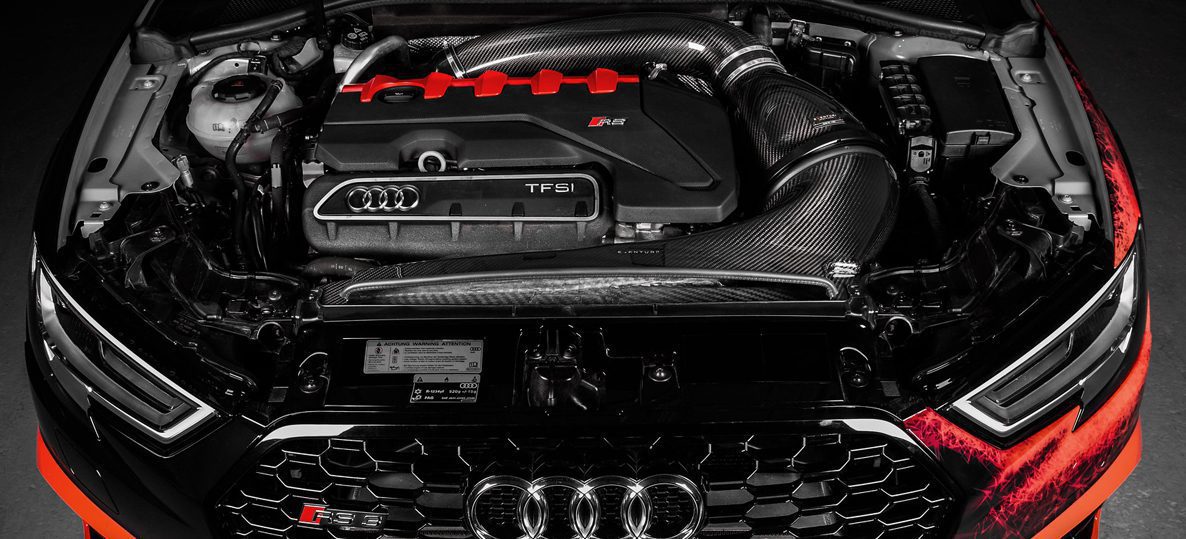

With the 8V RS3 Gen 2 and TTRS 8S platforms being widely used for high power builds, we have developed a ground-breaking intake system to support even those exceeding the 1000whp mark. This intake system has been developed to offer the highest possible flow rate whilst maintaining the lowest intake temperatures possible. Each component has been designed to provide the turbo with a smooth and free flowing path. The intake tube has an internal diameter of 103mm or just over 4″ and has a smooth curvature from the filter housing all the way to the turbo inlet. The filter itself has been specifically designed for this intake and has a huge outer diameter of 210mm or 8.3″ with a filtration surface area of over 130,000mm^2. The patented Venturi housing has been designed to provide the maximum internal volume possible for the RS3 engine bay space available and provides laminar flow to the turbo tube. Finally, the duct seals the filter opening to the front slam panel but is not restricted by just the stock entry feed. We have lifted the front of the duct to now provide an extra opening behind the hood which is equivalent to an extra 7″ diameter hole for the intake to draw from. The resulting system has the capability of flowing 840 CFM at 28″ H2O while keeping intake temperatures at a minimum with the sealed design.

The Eventuri Difference

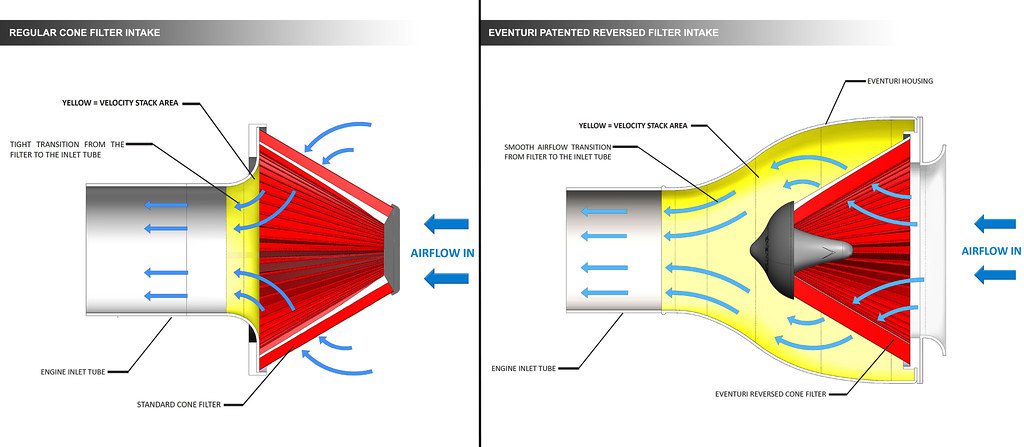

The 8V RS3/TTRS Eventuri system uses our Patented Carbon fibre Housings which provide an aerodynamically efficient airflow path from the filter to the turbo tubing. Not just another cone filter with a heat shield but a unique design which invokes the Venturi affect.

Flow Bench Testing
We conducted flow rate tests using a Superflow SF-1020 to measure the maximum flow rate possible at a pressure drop of 28” H2O. Tests were done on the same day in controlled conditions using the same test jig for each system. We tested our full intake system against the stock airbox system. The results show just how restrictive the stock airbox is, which we have managed to improve by up to 58% in maximum possible flow rate. Importantly this has been achieved with a sealed intake system so the intake temperatures will also be maintained at a minimum.

Dyno Testing
The Eventuri Stage 3 Intake has been tested by various reputable tuners globally who have been building high powered RS3/TTRS projects for road and track use. The first set of results are tested on a TTRS equipped with a TTE700 hybrid turbo. Tests were done on the same day back to back with the hood closed. They tested the stock airbox against the stage 3 intake and also with the addition of the Eventuri 4″ turbo inlet tube which is an additional product.

Dyno Results Summary
Stock Airbox with Modified Stock Turbo Inlet for TTE700 = 576.5 HP
Eventuri Stage 3 Intake with Modified Stock Turbo Inlet for TTE700 = 606.5 HP
Eventuri Stage 3 Intake with Eventuri Turbo Inlet for TTE700 = 620.8 HP

The Eventuri stage 3 intake has also been tested on full frame turbo builds pushing the limits of the DAZA engine. Recent tests from Eurocharged Canada used our stage 3 intake to achieve 1010whp which further proves the flow capability of the Eventuri system. During testing, Eurocharged tuners commented that they were able to make more power at a lower boost setting using our stage 3 intake in comparison to other systems they had been using. Their RS3 has already achieved a 9.1 second quarter mile pass with a 160mph terminal speed and are well set to go under 9 seconds soon.

The gains are from a combination of reasons:

1) The sealed system keeps IATs low – the RS3 engine bay can get heat soaked very quickly so an open cone filter will cause an increase in IAT values resulting in a loss of performance.

2) The Venturi housing provides a smooth transition from the filter to the intake tubes which are both matched to an internal diameter of 103mm. This helps the hybrid and full frame turbo setups to run more efficiently.

3) The entire system is constructed from pure pre-preg carbon fibre which is great at insulating from heat and has smooth internal surfaces as opposed to fibreglass which will have sharp resin lines present.

Product Details

Part Numbers:
EVE-ST38V8S-CF-INT : Audi RS3 Gen 2 / TTRS 8S intake for DAZA and DWNA Engines.

The Eventuri RS3 8V / TTRS 8S intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards. We use 100% pre-preg carbon fiber with no fibreglass which means we can achieve a smooth internal surface to maintain smoother airflow. Here are the details for each component and the design ethos behind them:

Each intake system consists of:

Carbon Fiber Patented Venturi Filter Housing with 103mm Outlet
Bespoke High Flow Dry Cone Filter
Carbon Fiber Inlet Duct
Carbon Fiber Tube with 103mm IDOPF (DWNA) Breather adapter
Heat Shield with Gold Reflective Backing
Laser Cut Stainless Steel BracketsSilicon Breather Hose
Silicon Couplers and Reducer



£1,599.60
