Eventuri Audi Rs3 Carbon Fiber Headlamp Duct


Fitting Details

Installation available at our state of the art fitting centre based in Cheshire Oaks in the Northwest of England.

AUDI RS3 HEADLAMP DUCT

Introducing another World first – a purpose designed carbon headlamp duct for the Audi RS3 8V.

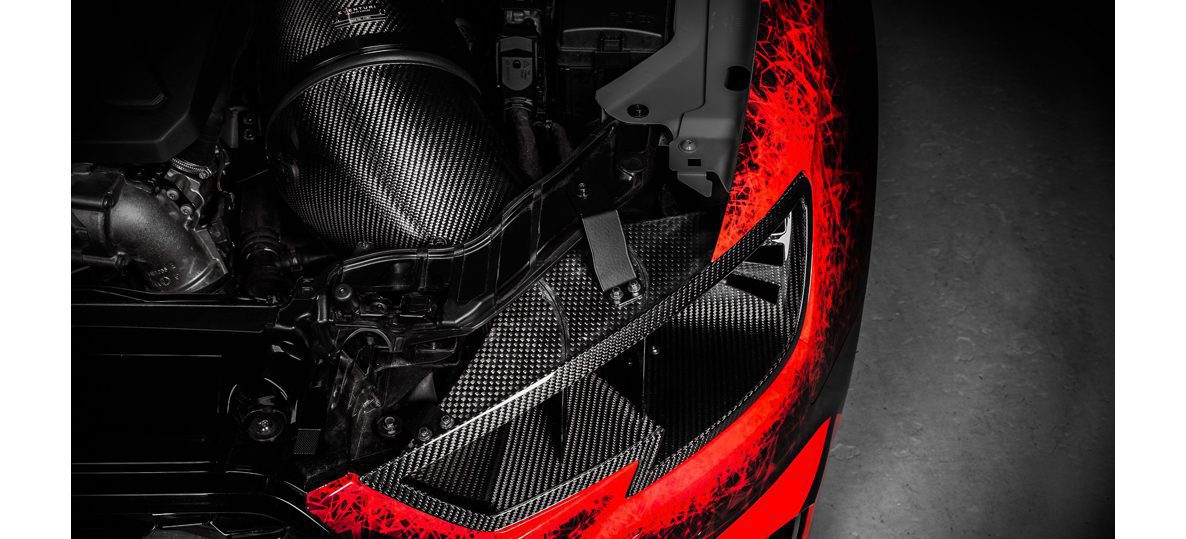

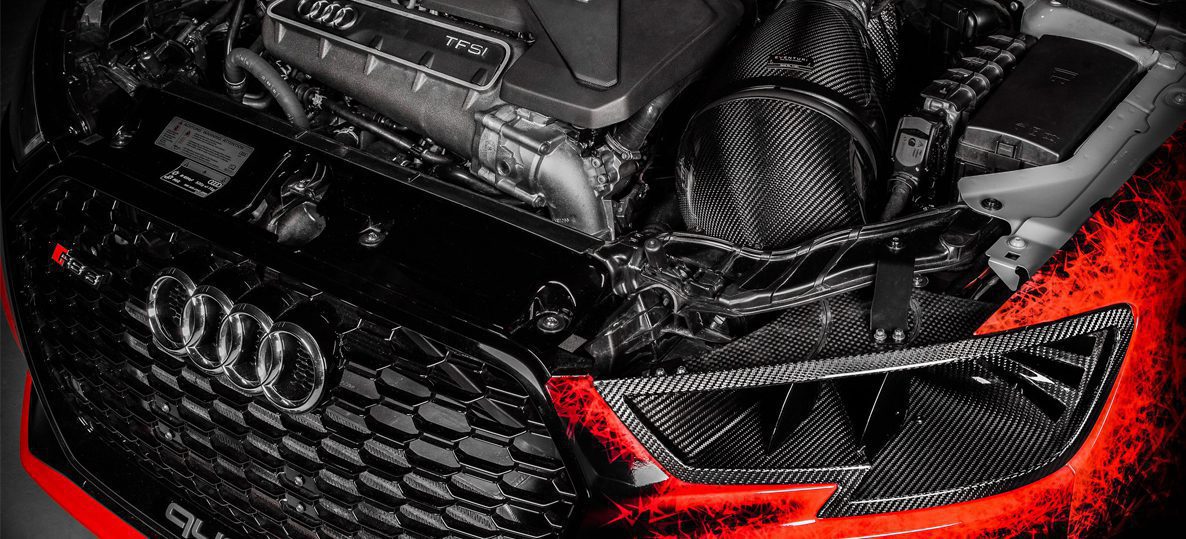

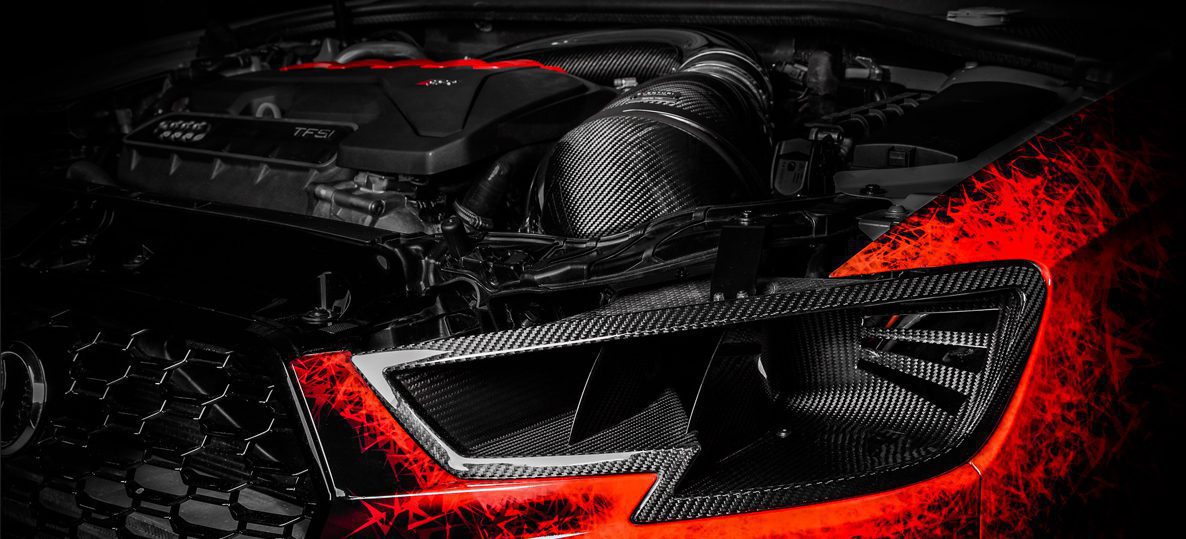

With the RS3 gaining popularity as a serious track car, we have developed an additional part for our intake to give you that extra edge. This headlamp duct replaces the OEM headlamp and seals against our RS3 intake for a true RAM-AIR configuration with a direct cold air feed to the filter. The duct follows the same lines as the stock headlamp and features two carbon air guides to channel airflow to the filter. It also has vents on the surface which is perpendicular to the oncoming flow to prevent drag. Tested on track at speeds over 190mph we have ensured that the advantage of the air feed outweighs any additional drag for a net gain in track times. Since this duct replaces the main intake duct inside the engine bay against the slam panel – this area now remains open as a source of cooling for the engine itself. With the car in motion, external air flows into the grill and through the stock openings over the engine for an extra cooling effect. The headlamp duct allows for the most direct cold air feed possible and significantly helps to reduce heat soak keeping track times consistent.

Product details


Part Numbers:
EVE-ST38V8S-CF-HDP : Audi RS3 Carbon Headlamp Race Ducts

The Eventuri RS3 Headlamp Duct system is manufactured from prepreg carbon fiber engineered to perform a specific purpose and fabricated to the highest of standards.

Here are the details for each component and the design ethos behind them:
Each headlamp duct system consists of:

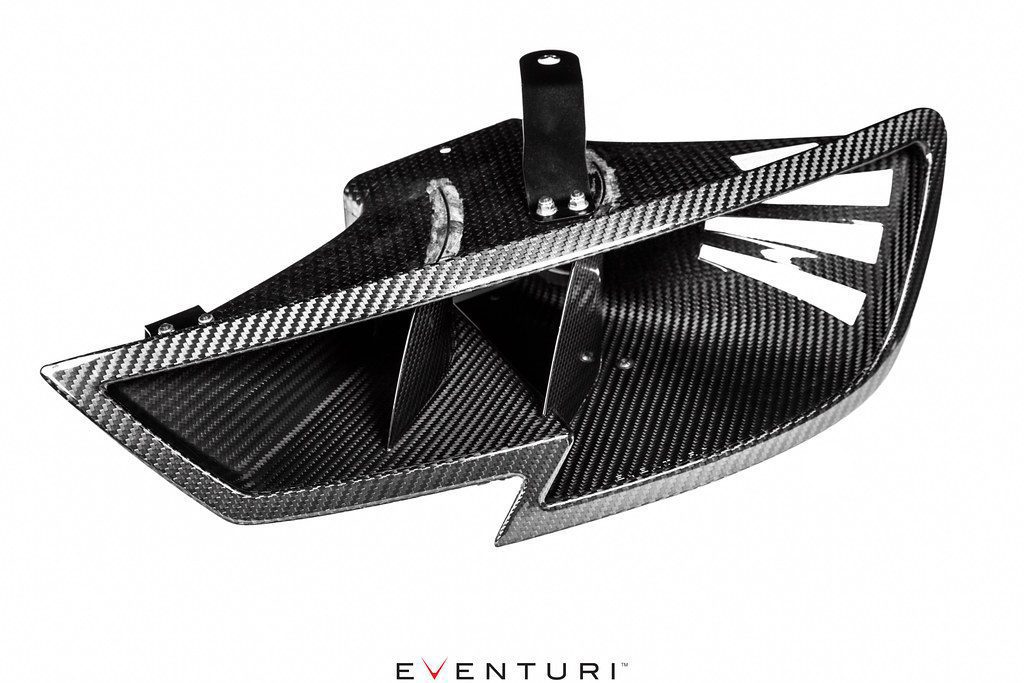

Carbon Headlamp Duct
Carbon Connecting Duct
Laser Cut Stainless Steel Brackets

Connecting Duct
The connecting duct seals the headlamp duct to the face of the intake itself. The rubber seal around the connecting duct allows the intake to move with the engine while keeping the seal intact. This prevents hot air from the engine bay to be sucked in by the intake. Again, made with prepreg carbon, the connecting duct is both functional and adds a great aesthetic to the engine bay.

Coupled with the Eventuri intake system, this headlamp duct provides the ultimate setup for track use.

£788.40
